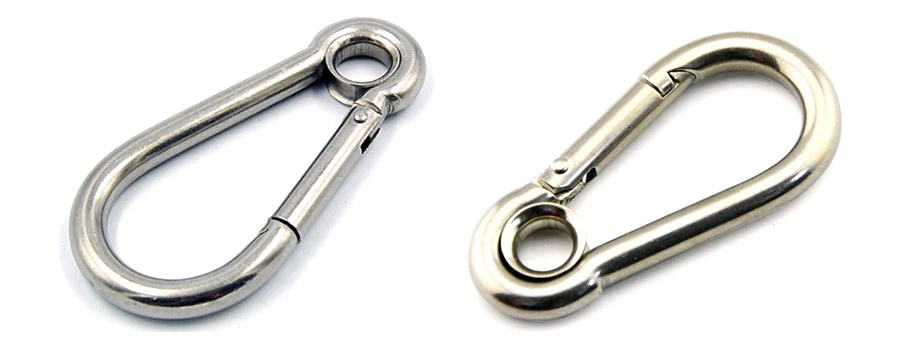

Snap Hook With Eyelet
Made of stainless steel 304/316 and coated with electrogalvanised steel, the perforated type A hooks are highly corrosion resistant and offer superior strength and reliability. DIN5299 Type A clasps with holes are safe and easy to use, the clasps are designed to withstand heavy loads and are...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Made of stainless steel 304/316 and coated with electrogalvanised steel, the perforated type A hooks are highly corrosion resistant and offer superior strength and reliability.
DIN5299 Type A clasps with holes are safe and easy to use, the clasps are designed to withstand heavy loads and are extremely safe and reliable under extreme conditions. The hole design of the hook makes it easy to attach and detach ropes, chains, and other fastening tools. This makes them ideal for use in a variety of industries such as construction, Marine and outdoor sports.
FEATURE:
* Low density and high strength
* Excellent corrosion resistance
* Good resistance to high temperature
* Excellent bearing to cryogenic property
* Good thermal properties

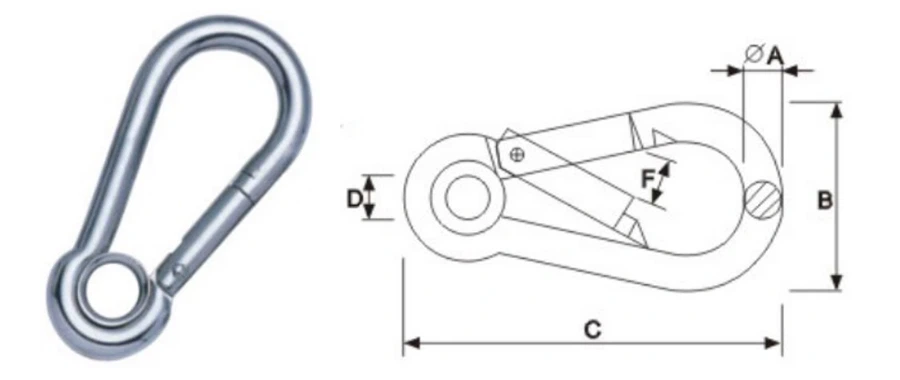

| Size (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
F (mm) |
W.L.L. (lbs) |
N.W（g/pcs） |
| 4x40 | 4 | 20 | 40 | 5 | 7 | 80 | 9 |
| 5x50 | 5 | 25 | 50 | 5 | 7 | 100 | 17 |
| 6x60 | 6 | 30 | 60 | 5 | 8 | 140 | 27 |
| 7x70 | 7 | 35 | 70 | 7 | 8 | 200 | 46 |
| 8x80 | 8 | 40 | 80 | 10 | 9 | 250 | 67 |
| 9x90 | 9 | 45 | 90 | 10 | 10 | 280 | 95 |
| 10x100 | 10 | 50 | 100 | 13 | 11 | 400 | 136 |
| 11x120 | 11 | 57 | 120 | 13 | 16 | 500 | 188 |
| 12x140 | 12 | 67 | 140 | 15 | 19 | 600 | 165 |
| 13x160 | 13 | 74 | 160 | 17 | 25 | 700 | 355 |
Quality assurance:
We do a good job of quality control of every detail, to provide you with every quality snap hook.
1: Strict selection of high-quality raw materials that meet the standards, the upper material forging upper products, snap hook HOMAR chooses Stainless steel 304/316, carbon steel and other materials
2: Strictly control the snap hook with eyelet manufacturing process. Do not take things small and not for, to achieve real quality control.
3: Strict control of each link of product sampling test, excellence, quality selection.
4: Strictly comply with international market standards
